整備ブログ→http://blog.livedoor.jp/tedesco/ マセラティビトゥルボ→AM477 マセラティシャマル→AM479 フェラーリ348GTB→F119H ご興味ある方はサーチしてみてください
暑いですねー！皆さん体調大丈夫ですか？
Sparco full bucket seat rails & seat side rails optimized modification → welding → rail extension → 4-point racing seat belt device → Maserati Trubo genuine seat belt catch device.

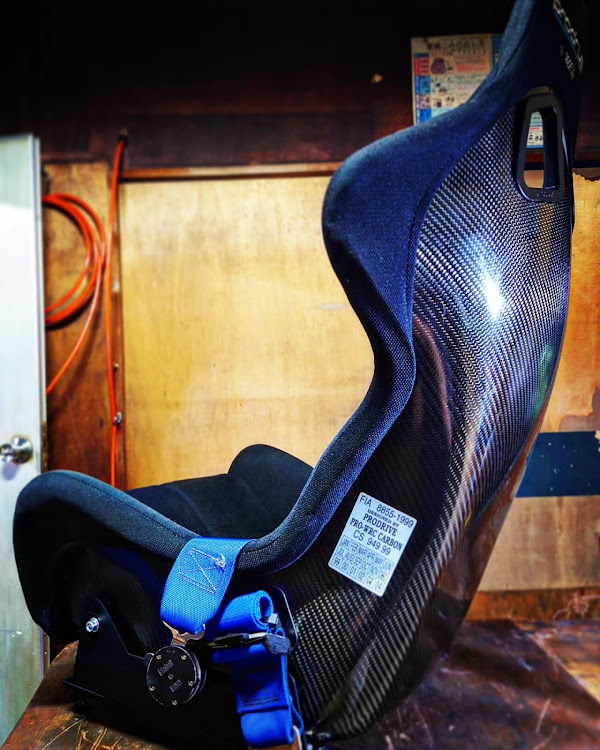

I want to combine a Sparco carbon full bucket seat with a Sparco lightweight seat rail, but it turns out that the dimensions of the general-purpose steel adapter on the seat side are about 50 mm short of the dimensions of the seat when it is temporarily attached to the rail,
Since a genuine Maserati seatbelt catch is to be installed, holes were drilled for the device along with 4-point racing seatbelt anchors.
Extensions cut from multiple steel side rails (adapters) are welded together to provide strong reinforcement.
The pedals of the Ferrari 348 are generally not positioned perpendicular to the steering wheel, and the seat position is also slightly offset to the right relative to the direction of travel.
Therefore, the Sparco seat rail and seat & adapter, again, are also positioned at an angle of approximately 5 to 10 degrees, starting at the rear side of the seat and shifting 5 degrees to the right.
