2020年01月10日 00時48分

Roma777nのプロフィール画像
Roma777nトヨタ マークII iR-V

私はロシア出身ですNovノボシビルスクに住んでいます🐻🌲❄️

マークII iR-VのJZX110に関するカスタム事例の投稿画像1枚目

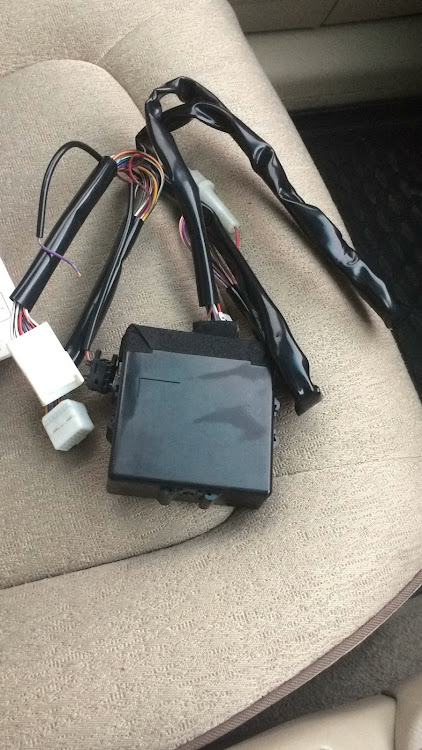

Quite a long time ago, an important package with rare nishtyaks arrived from Japan, one of which is an optional kit for adjusting the rearview mirror when reversing. Earlier, I managed to find such universal blocks for different models, with the ability to adjust the degree of inclination. Immediately specifically native from Mark 2 with all the same adjustments. The kit is a unit with installation wiring and instructions. The connection is as follows: from the unit at the feet of the passenger "P", a 14-pin connector goes to the door. Overlapping Chips. From the optional block to the “P” block connector and the answer to the native chip from the door. Next is the power connection. Red (IG) - ignition (the connector at the feet of the passenger E4 and blue-red is the signal from the rear speed "REV" connector P8.
In general, everything is elementary, it remains only to use and enjoy) well, of course, all this is turned off for the winter or just if necessary)

For Toyota mark 2 blit, this also happens. His number is 08641-23010.

マークII iR-VのJZX110に関するカスタム事例の投稿画像2枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像3枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像4枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像5枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像6枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像7枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像8枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像9枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像10枚目
マークII iR-VのJZX110に関するカスタム事例の投稿画像11枚目
